Блокатор за ексцентричния вал на Valvetronic за двигатели BMW N20 N26 N55 - 70038 -BGS-technic.

Блокатор за ексцентричния вал на Valvetronic за двигатели BMW N20 N26 N55 - 70038 -BGS-technic.

OEM код Ref114 450

Двигатели: BMW: N20/N26/N55
Използвайте инструмента за вала на Valvetronic, като го прикрепите с винта, който се намира на върха на инструмента. Натягайте вала по посока на стрелката.

1. Secure Fixing Tool on screw connection of eccentric shaft and set adjusting screw on special Fixing Tool, if necessary. Turn eccentric lever on special tool Fixing tool in direction of arrow. Gate is now preloaded.Fasten screws of gates.
Tightening torque 11 37 1AZ.
Installation note:
- At cylinder No.3, the gate can be pre-installed with one screw (internal) only.
- Oil spray nozzle is fitted only after return spring has been installed.
2.Press return spring apart.，Install return spring
3. Install return spring on gate.
Installation note:
- Insert return spring in intermediate lever .
- Check that rocker arm is in correct installation position.

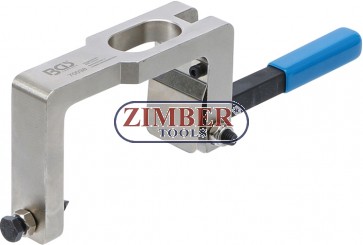

Sliding Block Fixing Tool | for BMW N20 N26 N55 - 70038 -BGS-technic.
Description
for fixing and aligning the sliding blocks in correct position when working on the camshaft or cylinder head
for BMW models with variable valve timing
avoids damages on the intermediate levers und further subsequent damages
to be used as OEM 114450 - 83300495049
suitable for the following BMW models:
1 (E81/E82/E87/E88)
1 (F20/F21)
2 (F22/F23/F87)
3 (E90/E91/E92/93)
3 (F30/F31/F34/F80)
4 (F32/F33/F36/F83/F82)
5 (E60/E61)
5 (F07/F10/F11)
6 (E63/E64)
6 (F06/F12/F13)
7 (E65/E66/E67)
7 (F01/F02/F03/F04)
X1 (E84)
X3 (E83)
X3 (F25)
X4 (F26)
X5 (E70)
X5 (F15/F86)
X6 (F16/F86)
Z4 (E85/E86/E89)
suitable for the following engine codes:

N20, N26, N51, N52, N55
Technical data
To be used as OEM1 114450 | 83300495049 BMW
Gross weight 490
